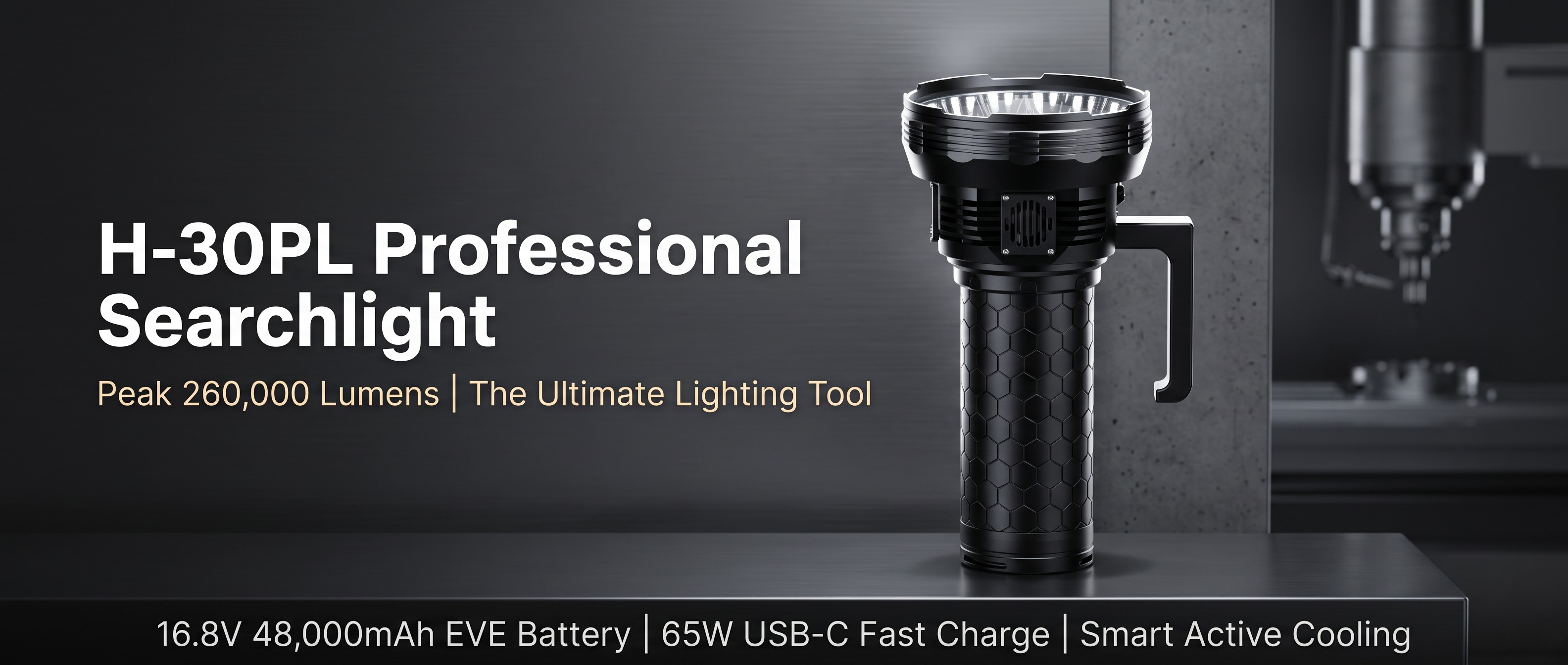

Helius H-30PL Professional Search Light is engineered for applications where maximum illumination and dependable performance are essential. Delivering up to 260,000 lumens, this high-output rechargeable search light combines advanced thermal management, intelligent power control, and rugged construction to meet the demands of emergency responders, industrial professionals, security teams, and outdoor operators.
Designed for continuous high-performance operation, the H-30PL features a proprietary active cooling system, a high-efficiency GaN driver, and a 48,000mAh battery pack. It provides powerful long-range illumination while maintaining stable output during extended use.
Generating ultra-high brightness creates significant engineering challenges, including heat buildup, brightness reduction, driver efficiency, and power management.
The H-30PL addresses these issues through four core technologies that work together to deliver higher sustained output, improved reliability, and longer service life.

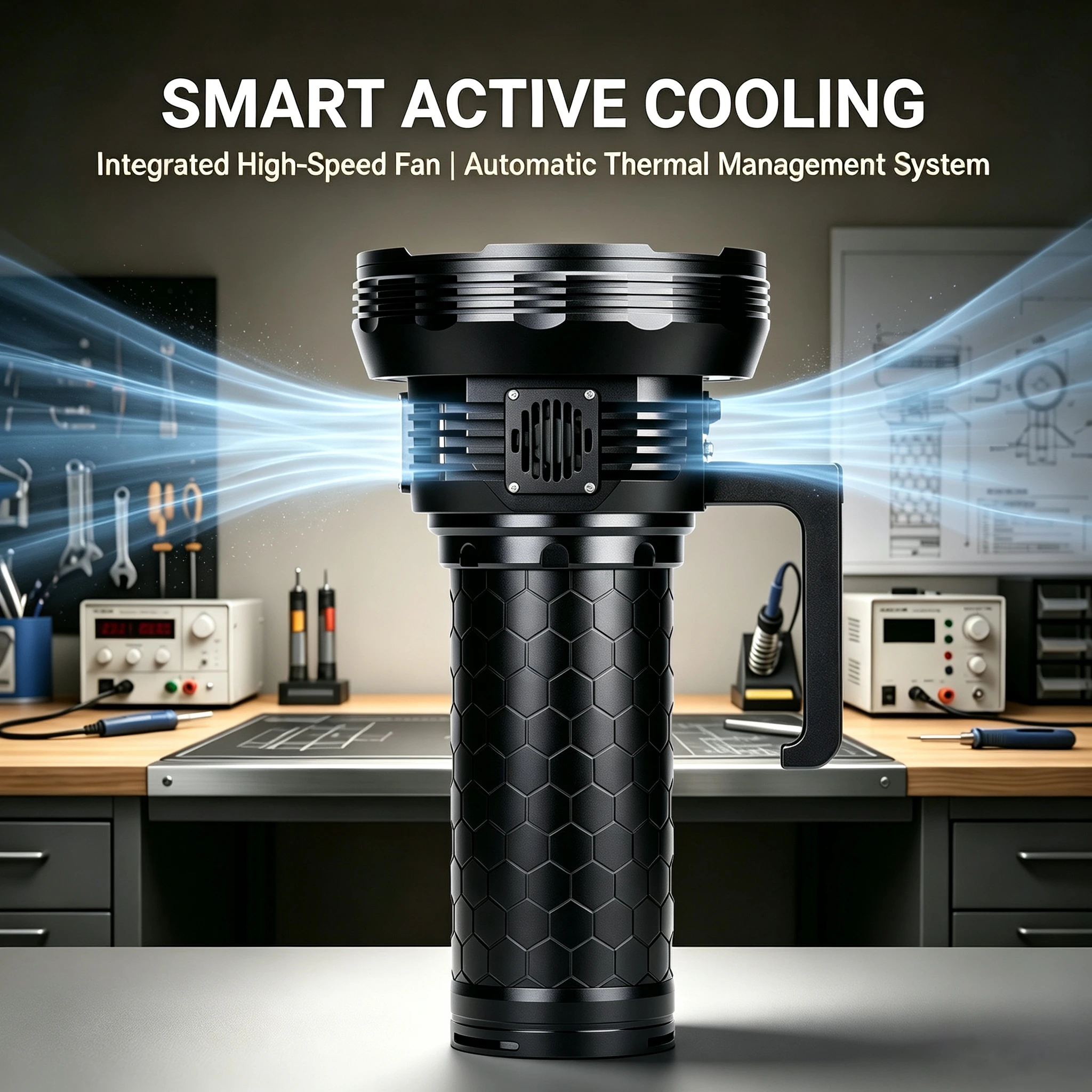

Heat is one of the biggest factors affecting flashlight performance. The H-30PL uses a proprietary four-dimensional active cooling system that efficiently transfers heat away from critical components.
Users can manually activate or deactivate the integrated cooling fan when needed, helping maintain higher brightness for longer periods while reducing thermal step-down during demanding tasks.

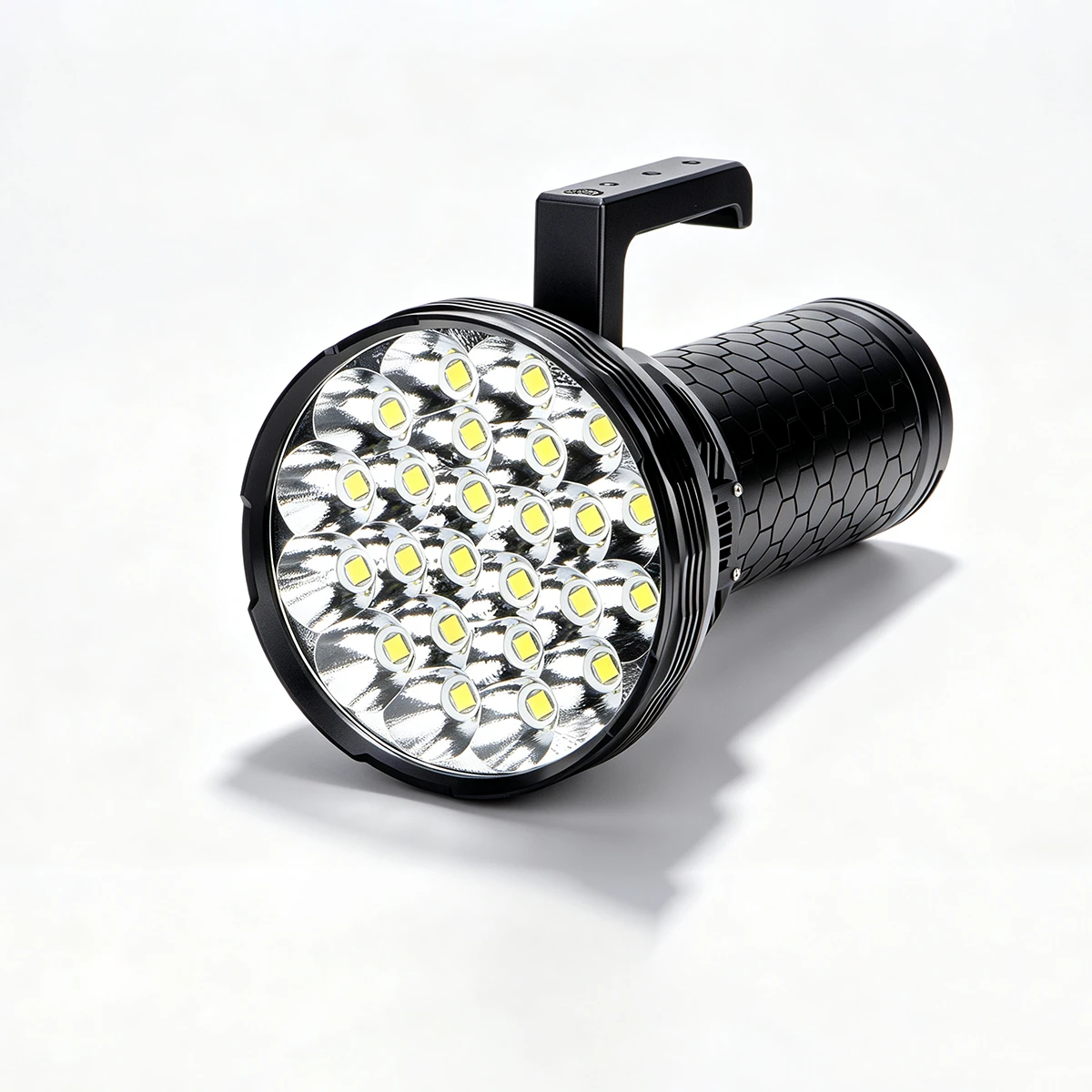

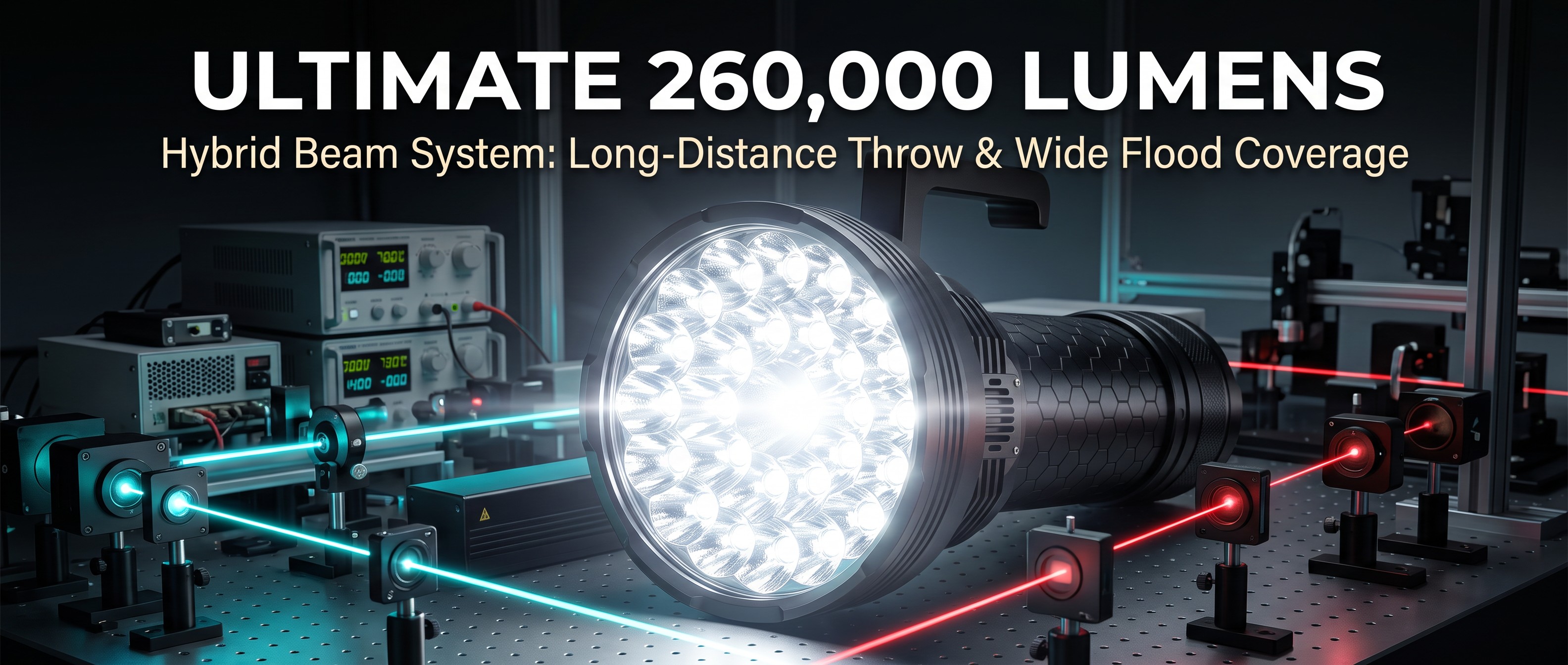

A precision array of 24 premium NBD7016 LEDs produces up to 260,000 lumens of intense white light.
The advanced optical system combines concentrated long-distance projection with wide flood coverage, making the flashlight suitable for illuminating large outdoor areas while maintaining excellent long-range visibility.
Applications include:
Search and rescue
Emergency response
Wildfire monitoring
Maritime operations
Border patrol
Industrial inspection
Construction sites
Disaster relief
Large event security
The advanced GaN constant-current driver delivers up to 95% power conversion efficiency, providing stable brightness, improved runtime, and intelligent power management.
Integrated protection systems help safeguard the flashlight during charging, operation, and heavy-duty use.
Powered by twelve high-rate EVE 21700 lithium batteries, the H-30PL provides a total battery capacity of 48,000mAh.
The built-in 65W USB Type-C fast charging system supports rapid charging while also offering bidirectional power delivery, allowing the flashlight to function as a high-capacity emergency power source for compatible devices.
The intuitive electronic interface allows quick access to every lighting mode.
Operation
Single Click, Power On or Off
Press and Hold, Cycle through Dim, Low, Medium-Low, Medium, and High

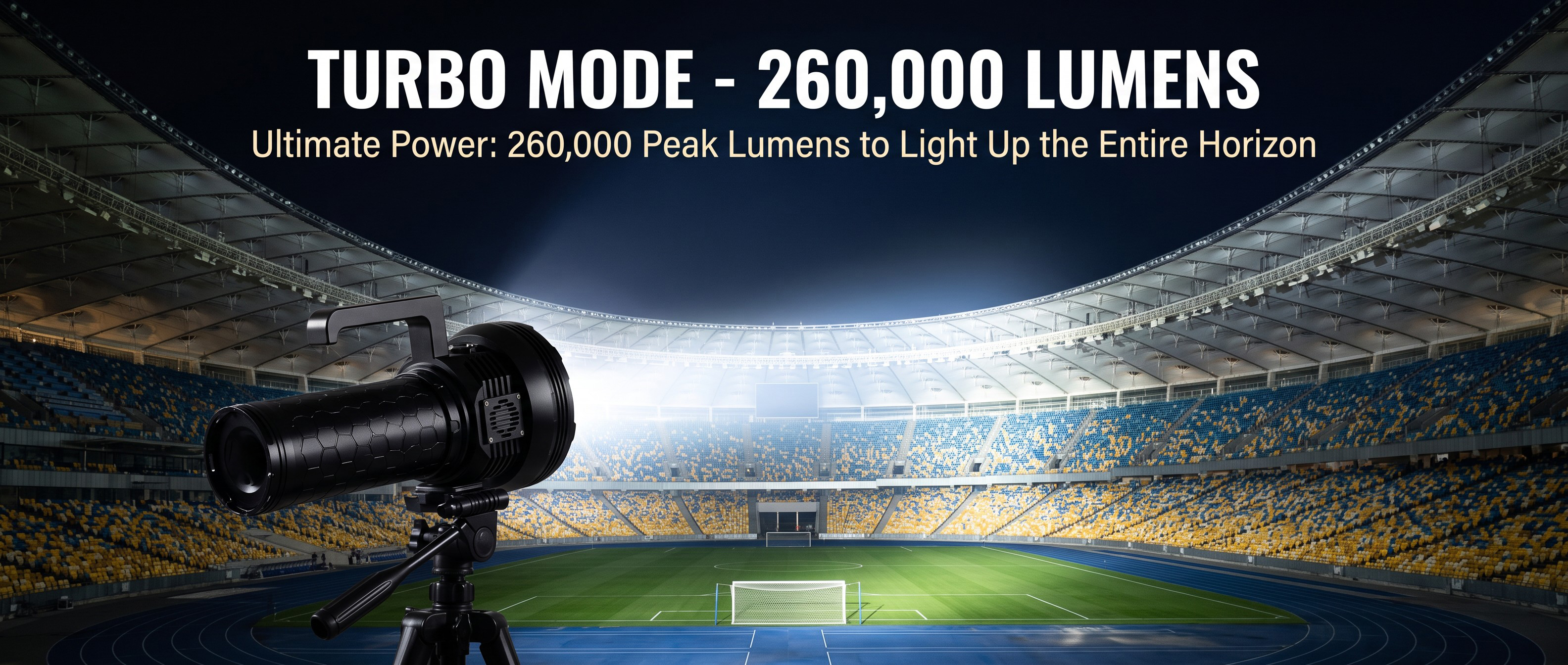

Double Click, Turbo Mode
Triple Click, Strobe Mode
Press and Hold for 3 Seconds, Cooling Fan On or Off
An electronic lockout function prevents accidental activation during storage and transportation.

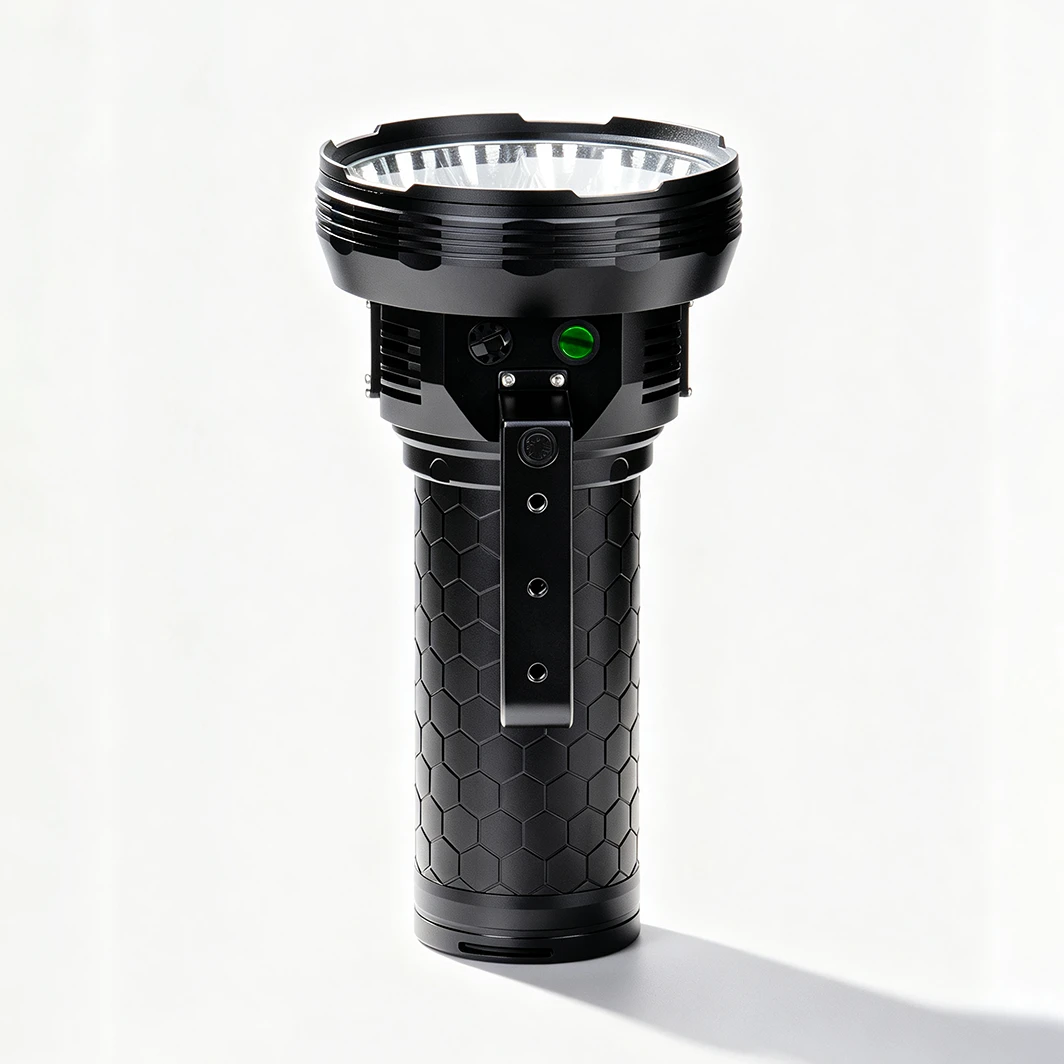

Built for professional environments, the H-30PL features a reinforced housing that withstands demanding outdoor conditions.
Its IP68 waterproof rating protects against dust, heavy rain, and temporary submersion, making it suitable for use in harsh weather and challenging work environments.

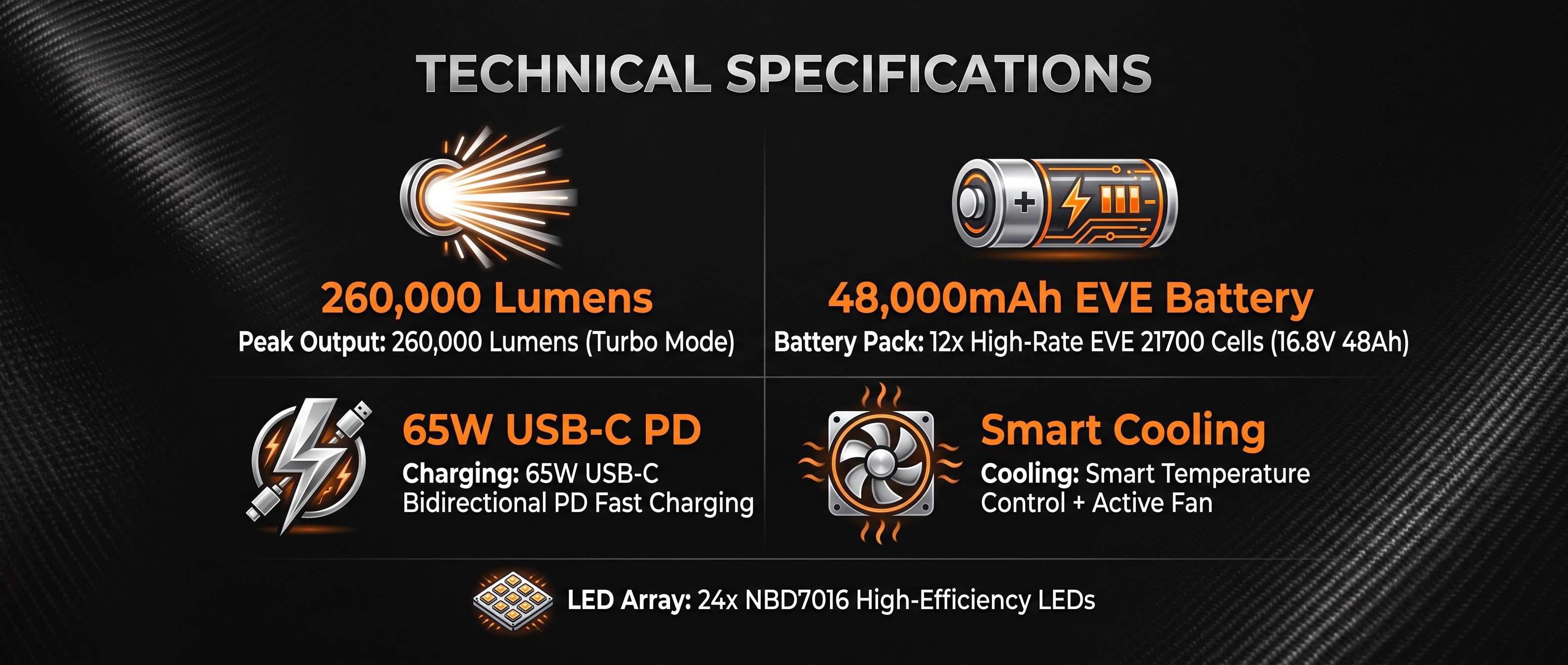

Specification | Details |
|---|---|
Product Name | Helius H-30PL Professional Search Light |
Maximum Output | 260,000 Lumens |
LED | 24 × NBD7016 LEDs |
Color Temperature | 6500K |
Beam Distance | 800 m |
Runtime | Up to 2 Hours |
Battery | 12 × High-Rate EVE 21700 Batteries |
Battery Capacity | 48,000mAh |
Charging | 65W USB Type-C Fast Charging |
Power Delivery | Bidirectional USB-C |
Driver | Intelligent GaN Constant-Current Driver |
Cooling System | Proprietary 4D Active Cooling |
Waterproof Rating | IP68 |
Optics | Smooth Reflector |
Dimensions | 290 × 150 × 82 mm |
Weight | 3.7 kg (Battery Included) |
Item | Details |
Product Packaging | Retail Box |
Carton Quantity | 20 pcs |
Carton Size | 50 × 19 × 22 cm |
Gross Weight | 5.1 kg |
Operation
Single Click: Turn the flashlight on or off.
Press and Hold: Cycle through brightness levels: Dim → Low → Medium-Low → Medium → High.
Double Click: Activate Turbo mode.
Triple Click: Activate Strobe mode.
Press and Hold for 3 Seconds: Turn the cooling fan on or off from any operating mode.
Electronic Lockout
With the flashlight turned off, press the switch four times rapidly to enable the electronic lockout. The red indicator will flash twice to confirm activation. While locked, press the switch four times again to unlock the flashlight. The red indicator will flash twice to confirm that lockout has been disabled.
Helius supports global wholesale customers with flexible manufacturing solutions.
Our services include:
OEM manufacturing
ODM product development
Custom logo engraving
Private label packaging
User manual customization
Retail packaging design
Bulk production
Worldwide export support
Helius H-30PL represents the next generation of professional portable search lighting. Combining an ultra-high 260,000-lumen output with intelligent thermal control, GaN power management, fast USB-C charging, and an industrial-grade battery platform, it delivers dependable performance where reliability matters most. It is an outstanding solution for distributors, government suppliers, industrial buyers, and professional lighting brands seeking a flagship high-performance search light.
