The product development cycle for modern hardware demands an absolute alignment between digital design concepts and factory floor execution. In the competitive landscape of consumer electronics, launching a new pocket-sized everyday carry (EDC) tool requires a strict, multi-phase verification process to ensure market readiness. This is particularly true for items targeting crowdfunding platforms, where early backers expect premium build quality, reliable performance, and strict adherence to delivery timelines.
This technical case study examines the structured engineering pipeline of a premium, capsule-sized magnetic keychain flashlight designed for a high-profile crowdfunding campaign. From testing materials, coordinating the design concept with actual production, to sample testing and repeated adjustments, to becoming a marketable product, the product in this case is supplied to a crowdfunding project. Every step of this hardware development lifecycle illustrates how professional manufacturers eliminate design flaws, optimize electronic component layouts, and scale production while preserving a project's original design intent.
The foundation of any successful hardware project is a robust physical shell capable of withstanding real-world wear while maintaining aesthetic appeal. For an ultra-compact flashlight, the mechanical enclosure must serve a dual purpose: protecting delicate internal electronic circuitry and acting as a passive heat sink for high-output light-emitting diodes (LEDs).
The product lifecycle began with high-precision 3D CAD modeling to define the geometric parameters of the flashlight’s capsule-shaped unibody structure. The technical challenge lay in creating an ultra-compact chassis that could accommodate an integrated charging port, an internal battery pack, a power management printed circuit board (PCB), and a magnetic tailcap interface without expanding the total outer diameter past structural thresholds.
Engineering Blueprint Phase:
[Initial CAD Concept] -> [Internal Clearance Allocation] -> [Finite Element Stress Analysis]
To achieve a premium tactile feel and elite impact resistance, engineers selected a high-grade aluminum alloy block as the core substrate material. Aluminum offers the optimal balance of tensile strength, weight minimization, and thermal conductivity required to dissipate heat from surface-mount LEDs. Following precision computer numerical control (CNC) lathe turning, the raw shells undergo custom surface anodization. This creates a hard, corrosion-resistant oxide layer that protects the metallic surface from the abrasive environments typical of keychain tools.
With the external geometric envelope established, the engineering team focused on optimizing the internal component layout. Packing modern power and charging features into a microscopic cavity requires highly specialized surface-mount technology (SMT).

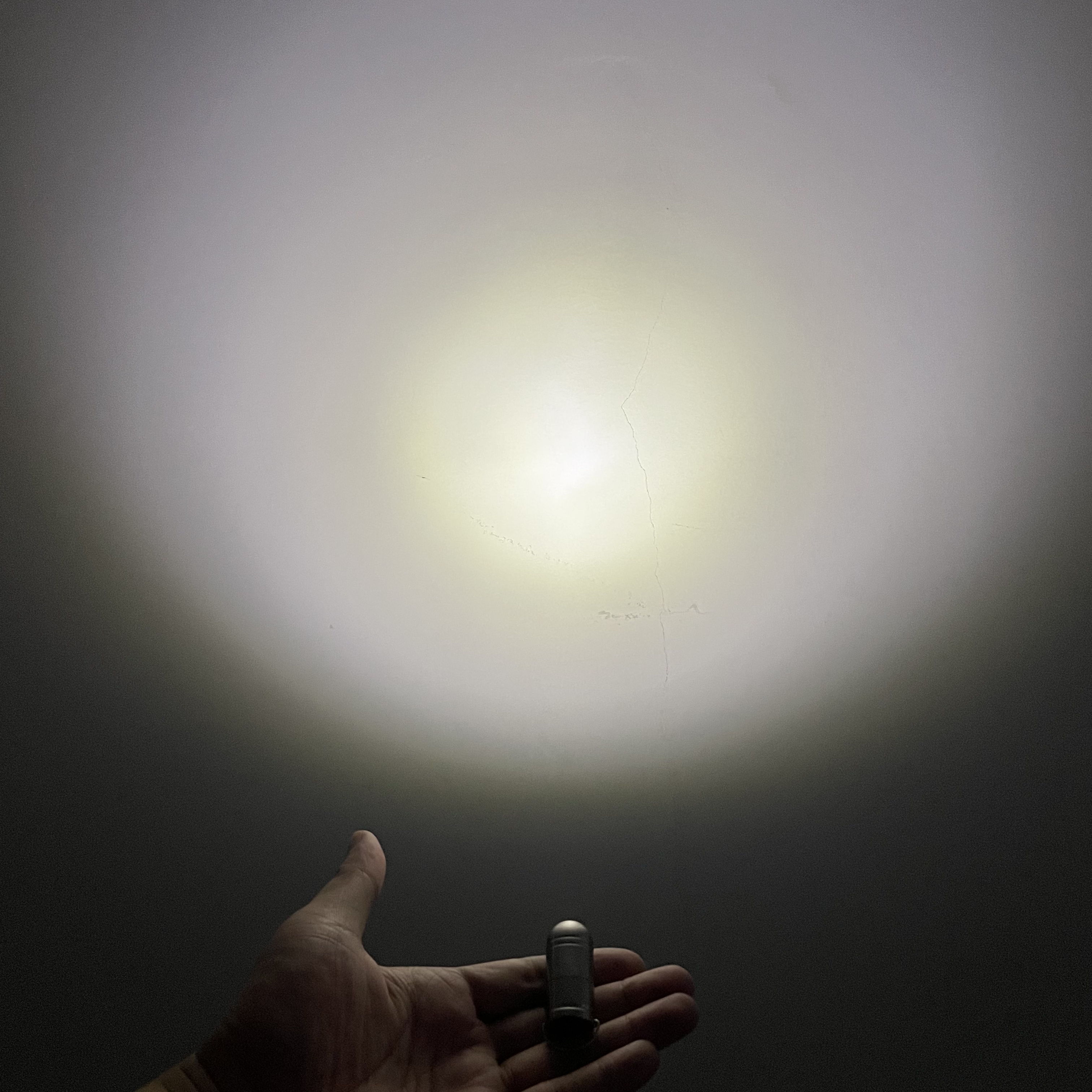

The optical assembly uses a high-density, surface-mounted LED board paired with a high-efficiency polished metal micro-reflector cup. This custom reflector shape ensures optimal beam focus, smoothing out wild peripheral light scatter and directing lumens into a clean, concentrated beam path suitable for everyday utility.
The underlying hardware platform is a multi-layer PCB featuring an integrated USB-C charging interface. The electronic layout integrates several critical components:
An integrated buck regulator to maintain steady, flicker-free light output throughout the battery discharge curve.
A physical tactile power switch providing crisp tactile feedback.
Surface-mount resistors and custom trace routes optimized for minimal current leakage.
To maximize energy density within the cylindrical shell, a flat lithium-polymer (Li-Po) battery cell was selected over standard round cells. This choice allows the battery to fill the internal cavities far more efficiently, increasing runtime without altering the external dimensions.
A common point of failure for crowdfunded hardware occurs during the transition from a digital design file to the actual manufacturing line. Reconciling stylistic choices with concrete assembly constraints requires close collaboration between the industrial design and manufacturing engineering teams.
During the initial prototype assembly validation phase, physical spatial constraints emerged. The original aesthetic concept featured a highly tapered rear tailcap assembly to emphasize a sleek silhouette. However, factory test assemblies revealed that this severe taper did not leave enough clearance for the protective structural wiring loops and internal magnetic components, threatening to pinch cables and cause short circuits during mass assembly.
To solve this issue without disrupting the product’s core look, engineers adjusted the inner shell dimensions. By thinning out non-structural internal walls on a precision CNC line, they created the necessary internal clearance while keeping the external shape completely intact.
Prototype batches underwent strict stress testing to ensure performance compliance:
Weight Optimization: Calibrated laboratory scales verified that the complete, assembled device weighed exactly 37 grams, meeting the strict weight limits required for a comfortable keychain carry experience.
Magnetic Force Testing: Specialized pull-force testing verified that the integrated magnetic tailcap held firmly to metallic surfaces under stress, ensuring reliable hands-free operation.
Thermal and Electrical Profiles: Automated testing stations monitored charging curves and thermal dissipation patterns to guarantee absolute user safety under continuous high-output operation.

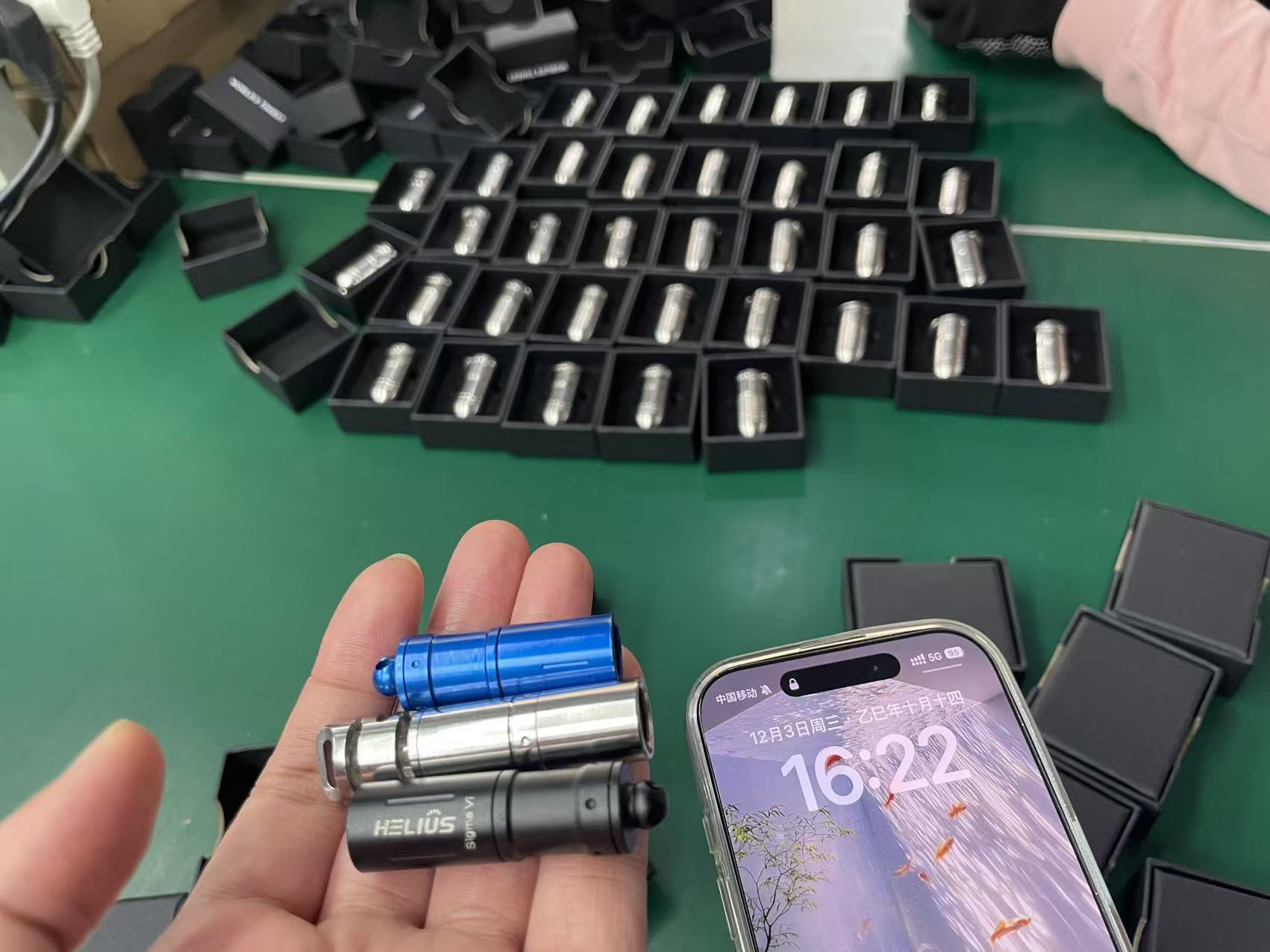

Once the finalized prototypes successfully cleared all performance gates, the manufacturing facility moved the project into mass production.
Factory Mass Production Framework:
[Component SMT In-Circuit Test] -> [Tray-Based Battery Matching] -> [Final CNC Thread Laser Seals]

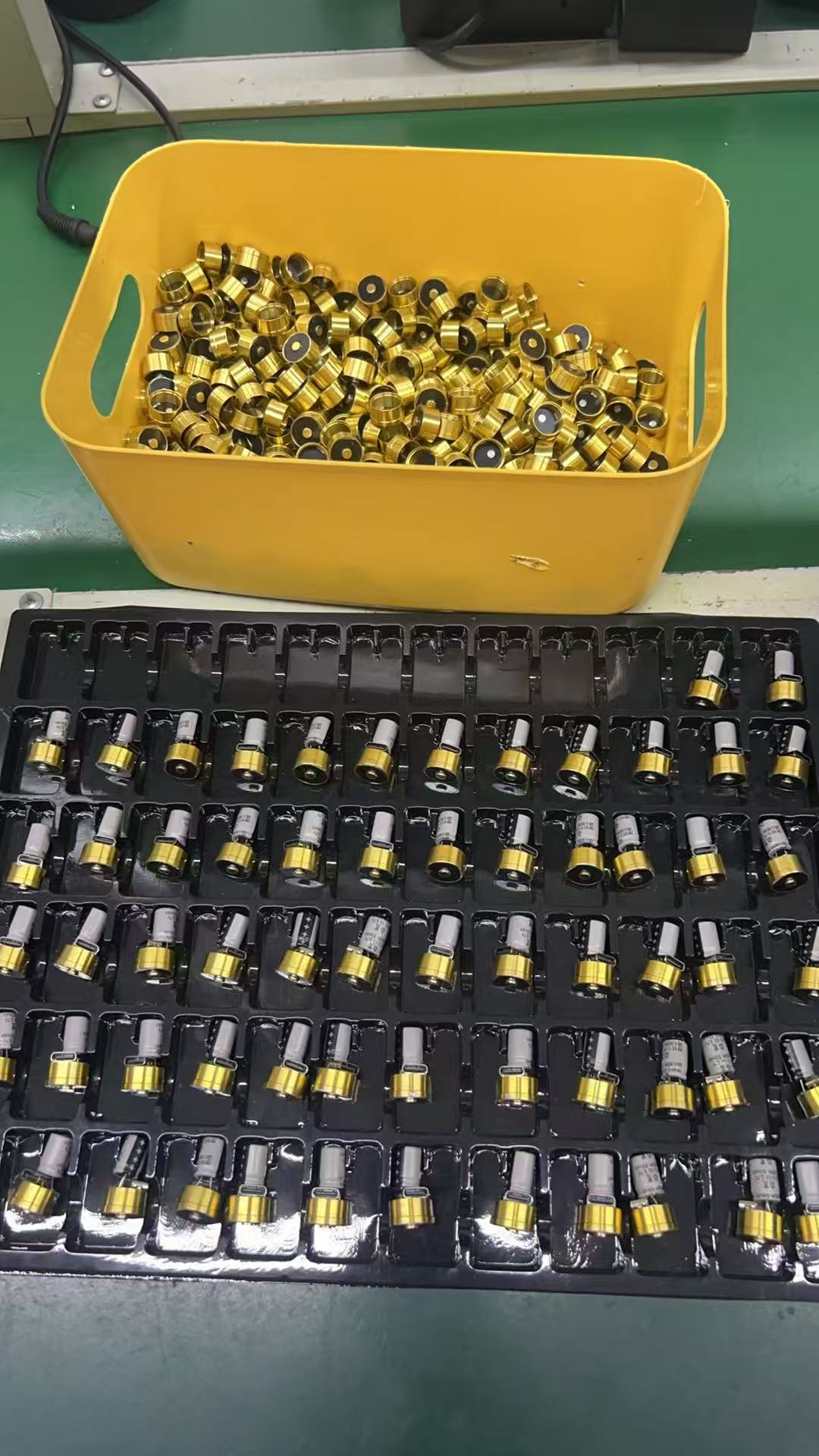

To eliminate component defects at scale, production relies on organized, high-density plastic component trays. These trays systematically index internal charging modules and battery cells prior to final assembly. Every power module passes through automated in-circuit testing (ICT) to check voltage thresholds and current regulation before insertion into the anodized aluminum housing. This rigorous quality control framework ensures that every unit shipped to crowdfunding backers performs identically to the certified engineering samples.
Navigating this demanding path—from testing materials, coordinating the design concept with actual production, to sample testing and repeated adjustments, to becoming a marketable product, where the product in this case is supplied to a crowdfunding project—demands an experienced production partner. For e-commerce entrepreneurs, private label brands, and product developers, minor oversights in electronic clearances or factory testing can lead to project delays, negative customer reviews, or costly product recalls.
